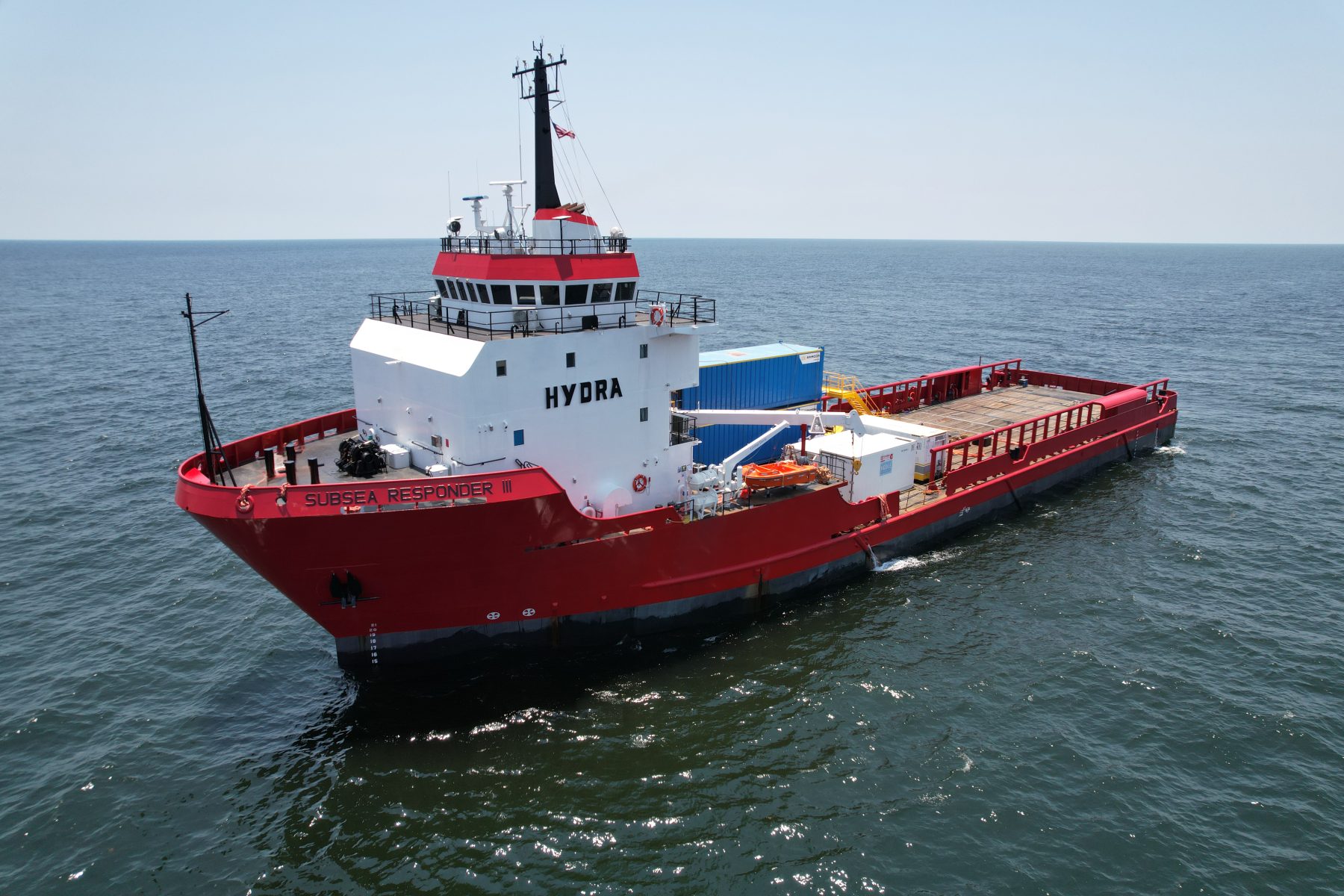

Subsea Responder III

Main Characteristics

Classification: ABS
IMO: 9214915
Flag: USA
Port of Registry: Port Arthur
Year Built: 1999 (Major Refit 2024)
O.N.: 1076923
Call Sign: KSSR
MMSI: 368627000
Hull Number: 154
Certifications: ABS / USCG
Notations: ✠A1, Ⓔ, AMS, DPS-2

Special Features

Provision Crane – Max Lift: 11 US Tons
Internet Access: Starlink

Machinery

Main Engine: 3x CAT 3516B 1852kW, 600VAC 60Hz
Z-Drives Unit: 2 x Aquamaster 3001AZ 2,500 HP (1,864 kW)
Auxiliary Generator (Set 1): 300 kW, 480VAC, 60Hz
Emergency Generator: 99 kW, 480VAC, 60Hz

Performance

Max Speed: 10 kts
Cruising Speed: 9 kts
In-Port Fuel Consumption: 600 gallons/day
Fuel Consumption (Transit): 3500 gallons/day
Fuel Consumption (DP Mode): 2500 gallons/day

Capacities

Deadweight: 3819 US Tons
Ballast: 132809 gallons
Potable Fresh Water: 92188 gallons
Fuel: 313602 gallons
Deck Loading: 1024 lbs/ sq. ft

Dimensions

Length Overall (LOA): 250 ft
Length Between Perpendiculars (LBP): 235 ft
Back Deck Area: 5500 sq. ft.
Breadth (Beam): 54 ft
Depth: 23 ft
Max Draft: 20 ft

Accommodations

Berthing – Total: 51
Single Berth Cabins: 11
Four-Man Cabins: 4

ROV

Model: Schilling HD97 150 hp
Maximum Depth: 10000 ft
Owner: Hydra

Vessel Tour
