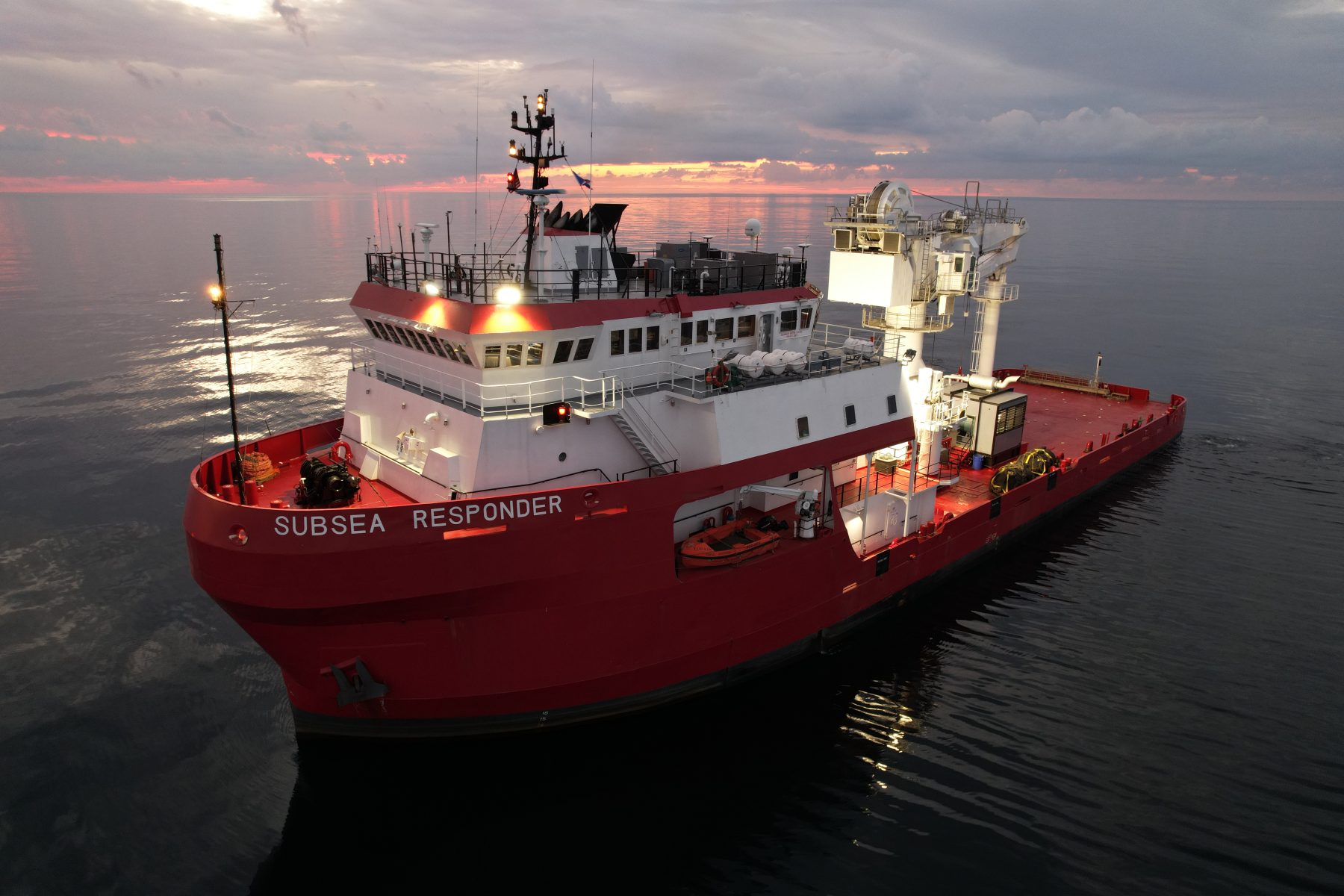

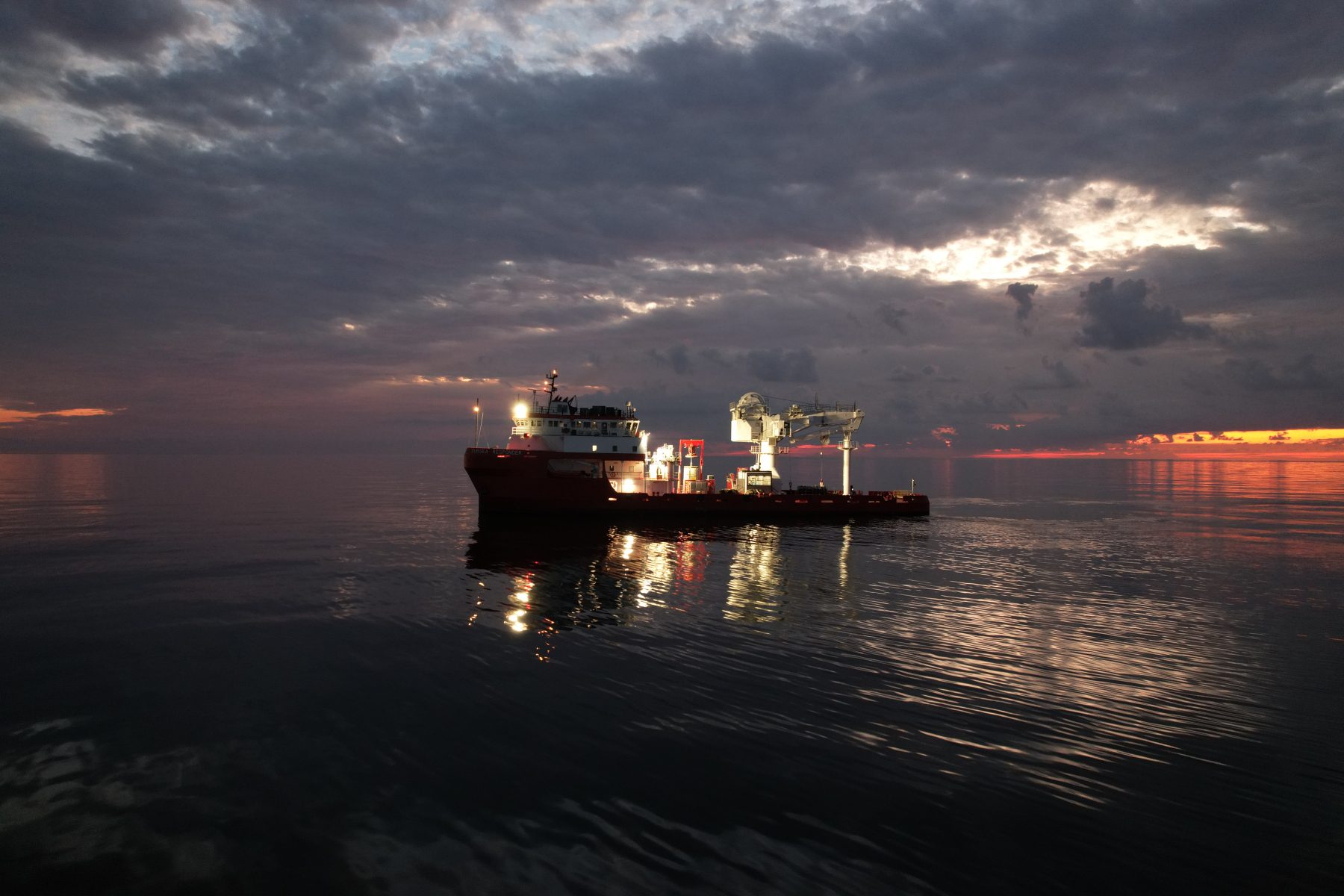

Subsea Responder I

Main Characteristics

Classification: ABS
Classification ID: 7163405
IMO: 9201645
Flag: Marshall Islands
Port of Registry: Majuro
Year Built: 1998 (Major Refit in 2021)
O.N.: 10258
Call Sign: V7A5816
MMSI: 538010258
Hull Number: 6670
Certifications: SOLAS Full
Notations: A1, AMS, DPS-2

Special Features

Subsea Knuckle Boom Crane – Max Lift: 43.32 US Tons
Active Heave Compensation: Sepro
Provision Crane – Max Lift: 2.39 US Tons
Internet Access: Starlink

Machinery

Main Engine: 2x EMD 16-645-E6 1950HP
Z-Drives Unit: 2x Kamewa Aquamaster 2001
Auxiliary Generator (Set 1): 3x Detroit 250kW/440V/60Hz/3Ph 1x Cat. 3508B 910kW/440V/60Hz/3Ph
Emergency Generator: 1x Detroit Diesel 75kW/480V/60Hz/3Ph

Performance

Max Speed: 10 kts
Cruising Speed: 9 kts
In-Port Fuel Consumption: 350 gallons/day
Fuel Consumption (Transit): 2400 gallons/day
Fuel Consumption (DP Mode): 1750 gallons/day

Capacities

Deadweight: 2175 US Tons
Ballast: 470194 gallons
Potable Fresh Water: 42643 gallons
Fuel: 235255 gallons
Deck Loading: 1000 lbs/ sq. ft

Dimensions

Length Overall (LOA): 217 ft
Length Between Perpendiculars (LBP): 210 ft
Back Deck Area: 2771.2 sq. ft.
Breadth (Beam): 54 ft
Depth: 20 ft
Max Draft: 15.5 ft

Accommodations

Berthing – Total: 57
Single Berth Cabins: 3
Double Berth Cabins: 1
Four-Man Cabins: 13

ROV

Model: Schilling HD96 150 hp
Year Built: 1998
Active Heave Compensation: Sepro
Maximum Depth: 10000 ft
Owner: Hydra
