220’ DP2 LCV
Download Subsea Responder I Spec Sheet

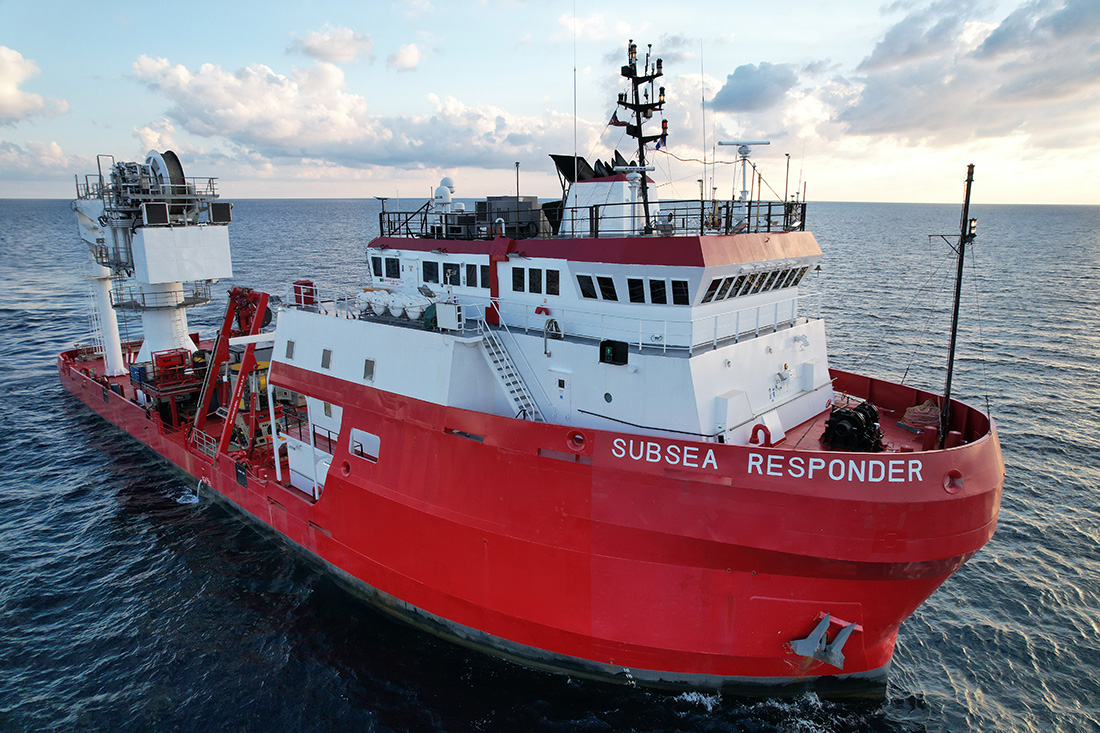

Subsea Responder I
Subsea Responder I
|
MAIN CHARACTERISTICS |
|
|
Classification |
ABS |
|
Classification ID |
7163405 |
|
IMO |
9201645 |
|
Flag |
Marshall Islands |
|
Port of Registry |
Majuro |
|
Year Built |
1998 (Major Refit in 2021) |
|
O.N. |
10258 |
|
Call Sign |
V7A5816 |
|
MMSI |
538010258 |
|
Hull Number |
6670 |
|
Certifications |
SOLAS Full |
|
Notations |
A1, AMS, DPS-2 |
|
SPECIAL FEATURES |
|
|
Subsea Knuckle Boom Crane |
Max Lift: 43.32 US Tons |
|
Provision Crane |
Max Lift: 2.39 US Tons |
|
Internet Access |
Starlink |
|
MACHINERY |
|
|
Main Engine |
2x EMD 16-645-E6 1950HP |
|
Z-Drives Unit |
2x Kamewa Aquamaster 2001 |
|
Auxiliary Generator |
3x Detroit 250kW/440V/60Hz/3Ph 1x Cat. 3508B 910kW/440V/60Hz/3Ph |
|
Emergency Generator |
1x Detroit Diesel 75kW/480V/60Hz/3Ph |
|
PERFORMANCE |
|
|
Max Speed |
10 kts |
|
Crusing Speed |
9 kts |
|
In-Port Fuel Consumption |
350 gallons/day* |
|
Fuel Consumption |
2400 gallons/day* |
|
DP Mode |
1750 gallons/day* |
|
DIMENSIONS |
|
|
Length Overall |
217 ft |
|
LBP |
210 ft |
|
Back Deck |
2,771.2 sq. ft. |
|
Breadth |
54 ft |
|
Depth |
20 ft |
|
Max Draft |
15.5 ft |
|
CAPACITIES |
|
|
Deadweight |
2175 US Tons |
|
Ballast |
470,194 gallons |
|
Potable Fresh Water |
42,643 gallons |
|
Fuel |
235,255 gallons |
|
Deck Loading |
1,000 lbs/ sq. ft |
|
ACCOMMODATIONS |
|
|
Berthing Total |
57 |
|
Single Berth Cabins |
3 |
|
Double Berth Cabins |
1 |
|
Four-Man Cabins |
13 |
|
ROV |
|
|
Model |
Schilling HD96 150 hp |
|
Year Built |
2024 |
|
Active Heave Compensation |
Sepro |
|
Maximum Depth |
10,000 ft |
|
Owner |
Hydra |
